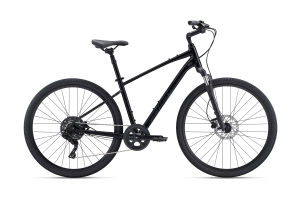

Cypress 2

$800

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • S
      160 cm5’3”  to 170 cm5’7”
  • M
      170 cm5’7”  to 180 cm5’11”
  • L
      180 cm5’11”  to 190 cm6’3”
  • XL
      190 cm6’3”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  SMLXL
ASeat Tube Length (mm) (inch)38515.243517.148519.153521.1
BSeat Tube Angle (degrees)73.0°73.0°72.5°72.5°
CTop Tube Length (mm) (inch)57022.45852360023.661524.2
DHead Tube Length (mm) (inch)1305.11455.71606.31756.9
EHead Tube Angle (degrees)70.5°70.5°70.5°70.5°
FFork Rake (mm) (inch)421.7421.7421.7421.7
GTrail (mm) (inch)83.63.383.83.383.83.383.83.3
HWheelbase (mm) (inch)108942.9110543.5112144.1113744.8
IChain Stay Length (mm) (inch)46518.346518.346518.346518.3
JBottom Bracket Drop (mm) (inch)652.6652.6652.6652.6
KStack (mm) (inch)61724.363124.864525.465925.9
LReach (mm) (inch)3821539215.439715.640716
MStand Over Height (mm) (inch)71828.374629.478330.882032.3
NHandlebar Width (mm) (inch)64025.268026.868026.868026.8
OStem Length (mm) (inch)803.1803.1903.5903.5
PCrank Length (mm) (inch)1706.71756.91756.91756.9
QWheel Size 700C700C700C700C
Specs
  • Sizes
    S, M, L, XL
  • Colors
    T/K
  • Frame
    ALUXX-grade aluminum
  • Fork
    SR Suntour NEX, 63mm travel
  • Shock
    N/A
  • Handlebar
    alloy, mid-rise, 25.4mm S:64cm, M:64cm, L:68cm, XL:68cm
  • Grips
    Giant ErgoContact
  • Stem
    alloy, quill, 25.4mm, adjustable S:90mm, M:90mm, L:110mm, XL:110mm
  • Seatpost
    alloy suspension, 30.9mm S:300mm, M:300mm, L:350mm, XL:350mm
  • Saddle
    Giant ErgoContact
  • Pedals
    fitness platform
  • Shifters
    microSHIFT Advent, 1x9
  • Front Derailleur
    N/A
  • Rear Derailleur
    microSHIFT Advent
  • Brakes
    Tektro hydraulic [F]160mm, [R]160mm rotors
  • Brake Levers
    Tektro TKD143
  • Cassette
    microSHIFT Advent, 11x46
  • Chain
    KMC X9
  • Crankset
    forged alloy, 40t S:170mm, M:170mm, L:175mm, XL:175mm
  • Bottom Bracket
    sealed cartridge
  • Rims
    Giant double-wall aluminum
  • Hubs
    alloy, 32h
  • Spokes
    stainless, 14g
  • Tires
    Innova Multi Purpose Hybrid, anti puncture, 700x45c
  • Extras
    55mm max tire size
  • Weight
    14.11 kg (31 lbs 01 oz) - Size (M)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
